Reversible USB type-C and lightning
A lot has changed since this post was created in Dec 2012, some updates below.
This post was discussed on Accidental Tech Podcast #44, with Marco Arment, Casey Liss, and John Siracusa.
The corporation founded by the group of companies that developed the Universal Serial Bus (USB) specification are defining a new standard to rollout to the world, the full specification of which is set to appear in “the middle of 2014”. There has been much talk about the reversible nature of the new plug and many have compared the plans to the already reversible plug being used on the Apple lightning connector.
What I’d like to discuss is what this means for Apple users once USB type-C is integrated into the mass market. Assuming Apple do integrate this new standard into their existing line up of laptop & desktop machines, replacing the existing USB ports, cables such as the existing Apple lightning cable will have lightning at one end and the new reversible USB at the other. As many speculative comparisons have pointed out, they will be similar in size (and hopefully structure too), and to all other users the cable direction will be reversible1. One can assume that most users will become accustomed to not caring which end of the cable they are plugging in.
This will cause problems for Apple two-fold.
- With lightning at one end and USB type-C connector at the other users will loose the reversible nature of the cable for Apple devices.
- Users will not be able to determine as easily which end of the cable goes in go the computer/charger or into the device.
The options as I see it are as follows, in increasingly less-likely order:
- Apple does nothing. They do not adopt USB type-C connectors in it’s machines. Doing so would risk falling out of date with peripheral market trends, which admittedly are moving away from wired connections generally (other than high transfer devices that will likely continue to use Thunderbolt on macs, assuming 3rd party adoption is increased).
- Apple release a cable like the mock up above, but do something different to the USB-end to make it visually different, perhaps a different tactile experience as well as appearance, so it is very clear which end you are using.
- Apple updates lightning again in a few years to mimic the size, shape and functionality of USB type-C. Unlikely as Apple put a lot of R&D into lightning and it does more than just charge & sync2.
- Apple & the USB-IF work together to make the USB type-C standard physically and for the most part functionally the same as lightning connectors so that they are interchangeable.
As a fan of Apple devices I hope whatever the solution here ends up being easy to use and inexpensive to replace. As someone who’s new kittens have chewed through £80 worth of lightning cables in the past month, a cheaper option would be well received. It would also be nice for Apple users to benefit from the cable orientation ambiguity other phone owners will surely receive.
Here’s hoping.
Full details available on the USB Implementers Forum website.
This post was discussed on Accidental Tech Podcast #44.
Update 2nd April 2014

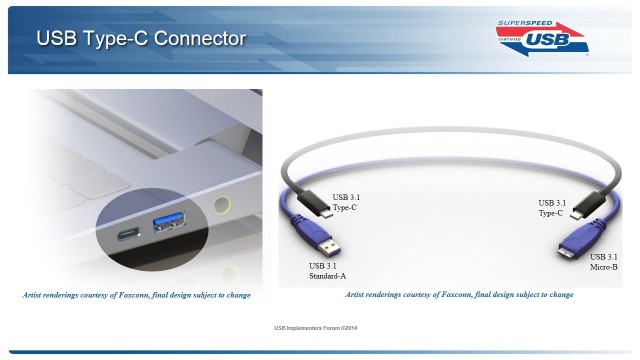

First details are starting to emerge about the new USB type-C connector. Initial reports appear to depict it appearing more like a shrunk-down version of a Micro USB-B connector with a metal shell and contacts on the inside of the connectors, rather than a lightning-style chip with all contacts on the outside. This looks and sounds like a bad idea for such a high-frequency use connection that will require a tiny little contact mound inside the miniscule hole, making the likelihood of breakage higher, especially in mobile phones.
More information
Update 13th August 2014
The final specification has been revealed in a press release, although no product image as yet as been published. It states the standard will have “Reversible plug orientation and cable direction” which is a better result than expected. Now we wait to see how it’s constructed. We expect to see a micro-usb type bent mental plug rather that something more lightning connector like as depicted above.
Update 24th September 2014
The first real look at an actual cable and port on Ars Technica.
Update 16th January 2015
A more detailed look at the USB 3.1 type-C cable and spec from Ars Technica at CES 2015.
Update 29th March 2016 In the recent 2016 March event Apple announced the 29W USB-C Power Adapter and with it USB-C to Lightning cable that allows fast(er) charging of an iPad Pro. These things are great unto themselves, but the cable itself is what interests me.
The only computer Apple sells today with a USB-C port is the Macbook (Macbook one), and the premise of my article here several years ago is that we might see more Macs today filled with USB-C ports instead of the same old USB type-A ports. I imagined people might have been using USB-C cables to charge their phones from computers or power bricks like the new 29W USB-C Power Adapter. This reality has not panned out.
However the challenges still remain that the ends are relatively similar in size and shape, for a modern Android device this cable is reversible (as well at the port itself) but having lightning on one end makes this a potentially confusing cable for Apple users when charging their iPad Pro.
More than anything I’m chuffed that my mockup above conjured from imagination alone before the port existed actually looks very similar to the product shot on the Apple website today 🙂
Footnotes
- Lightning is designed a as new standard to handle a lot of functions specific to iDevices. Also Apple has had proprietary connectors for it’s devices (except for the 1st gen FireWire iPods).
